Description

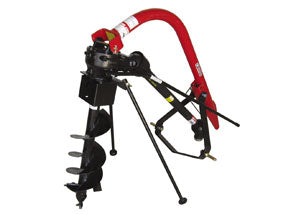

Post Hole Digger Less Auger
| Specifications | |
| Model | 300 |
| Boom Size (O.D.) | 2.875” |
| Yoke Size | 1/2" x 3” HRF |
| Boom Positions | 3 |
| Mount Type | Cat. 0 (7/8” pins) or Limited Cat. I |
| Gearbox Ratio | 3:01 |
| Gearbox Output Shaft | 2" |
| Gearbox Bearings | Tapered Roller |
| Gearbox Seals | Double lip, spring loader |
| Drive Type | PTO, 540 RPM |
| Shear Bolt | Yes, Grade 2 |
| Gearbox Ltd. Warranty | 5-yrs. |
| Tractor hp | up to 25 hp |
| Auger Sizes | 6” thru 12" |
| Auger Length | 30” |
| Auger Type | STD |
| Auger Point - Bolt-in | Fish Tail |
| Parking Stand Kit | Opt. (102160) |
| Weight (lbs.) | 149 |
| Product Number | 170545 |
Ideal for small acreage owners, Worksaver's Model 300 post hole digger is engineered to work with sub-compact tractors.
FEATURES
• Compatible with most tractors that are up to 25 horsepower (with Cat. 0 or limited Cat. 1 mounting)
• Three position 2.875" diameter boom fits a variety of tractor models
• Handles 6", 9", and 12" diameter standard duty 30" length augers
• Has a lever to adjust auger starting angle
• Large 2" output shaft with two-bolt auger connection for reliable power transfer
• Job matched augers have fishtail centre points with double flighting for quick, positive digging
• Shear-bolt protected PTO drive
• Gearbox features a 3:1 gear ratio, tapered roller bearings, spring loaded seals, and a 5-year limited warranty
• Optional parking stand kit available (GMR102160)
Optional PARKING STAND KIT - #GMR102160
This optional addition makes connecting or removing the digger a one-person job. This kit allows for easy connection of two removable legs that support the auger when in a vertical position.
ADDITIONAL NOTES
The GMR 300 is designed to fit most tractors equipped with a Category 0 or limited Category 1 three point hitch with 7/8" pins.
Most tractors of this size have lift arms with a 7/8" diameter and Category 1 pins, but with the 20" Category 0 spacing, tractors with very short lift arms made for 5/8" diameter pins may not be suitable for digging post holes. (Special 5/8-inch diameter pins are available for those tractors that can handle the post hole digger).
FEATURES
• Compatible with most tractors that are up to 25 horsepower (with Cat. 0 or limited Cat. 1 mounting)
• Three position 2.875" diameter boom fits a variety of tractor models
• Handles 6", 9", and 12" diameter standard duty 30" length augers
• Has a lever to adjust auger starting angle
• Large 2" output shaft with two-bolt auger connection for reliable power transfer
• Job matched augers have fishtail centre points with double flighting for quick, positive digging
• Shear-bolt protected PTO drive
• Gearbox features a 3:1 gear ratio, tapered roller bearings, spring loaded seals, and a 5-year limited warranty
• Optional parking stand kit available (GMR102160)
Optional PARKING STAND KIT - #GMR102160
This optional addition makes connecting or removing the digger a one-person job. This kit allows for easy connection of two removable legs that support the auger when in a vertical position.
ADDITIONAL NOTES
The GMR 300 is designed to fit most tractors equipped with a Category 0 or limited Category 1 three point hitch with 7/8" pins.
Most tractors of this size have lift arms with a 7/8" diameter and Category 1 pins, but with the 20" Category 0 spacing, tractors with very short lift arms made for 5/8" diameter pins may not be suitable for digging post holes. (Special 5/8-inch diameter pins are available for those tractors that can handle the post hole digger).
| 30" Length for Model 300 Digger | ||
| Model | Item # | Description |
| 6" STD | 170575 | 6" Std. Duty Single Flight Auger |
| 9" STD | 170565 | 9" Std. Duty Single Flight Auger |
| 12" STD | 170570 | 12" Std. Duty Single Flight Auger |
