Description

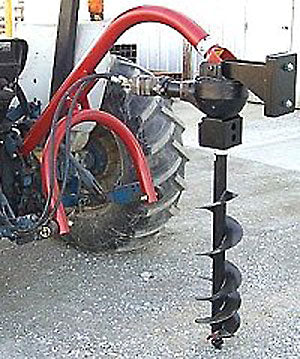

624HC 3-pt. Hydraulic Post Hole Digger
Increased performance is offered in the models 614HC & 624HC hydraulic 3-pt post hole diggers. Designed for Cat. I/II (7/8” Pins) three point hitches, they offer all the features of our 3-pt diggers with power provided by a field proven hydraulic drive motor and gearbox combination for a smooth transfer of power to the auger. Counter weights assure the digger maintains its vertical position for true-vertical holes.
| Specifications | ||
| Model | 614HC | 624HC |
| Boom Size (O.D.) | 3-1/2” | 3-1/2” |
| Yoke Size | 3” | 3” |
| Boom Positions | 3 | 3 |
| Mount Type | Cat. I/II | Cat. I/II |
| Gearbox Ratio | 3.18:1 | 3.18:1 |
| Gearbox Output Shaft | 2" | 2” |
| Gearbox Bearings | Tapered Roller | Tapered Roller |
| Gearbox Seals | Double lip, spring loader | Double lip, spring loader |
| Drive Type | Hydraulic | Hydraulic |
| Gearbox Ltd. Warranty | 5-yrs. | 5-yrs. |
| Hyd. Requirement | 5-10 GPM | 10-20 GPM |
| Hyd. Pressure psi | 1500-3000 | 1500-3000 |
| Optional Down Force Kit | Yes, DFK-70 | Yes, DFK-70 |
| Auger Sizes | 6” thru 14” | 6” thru 24” |
| Auger Length | 42" | 42” |
| Auger Type | STD, HDSF, HDDF | STD, HDSF, HDDF |
| Auger Point - Bolt-in | Fish Tail | Fish Tail |
| 12" Auger Ext. | Opt. (170705) | Opt. (170705) |
| Parking Stand Kit | Opt. (102165) | Opt. (102165) |
| Weight (lbs.) | 180 | 182 |
| Product Number | 702090 | 702095 |
| Worksaver Augers | |||
| Model | Item # | Description | |
| 6" STD | 170585 | 6" Standard Duty Single Flight Auger with Teeth | |
| 9" STD | 170710 | 9" Standard Duty Single Flight Auger with Teeth | |
| 12" STD | 170720 | 12" Standard Duty Single Flight Auger with Teeth | |
| 6" HDSF | 706150 | 6" HD Single Flight Auger with Teeth | |
| 6" HDDF | 706155 | 6" HD Double Flight Auger with Teeth | |
| 9" HDSF | 706109 | 9" HD Single Flight Auger with Teeth | |
| 9" HDDF | 706009 | 9" HD Double Flight Auger with Teeth | |
| 12" HDSF | 706112 | 12" HD Single Flight Auger with Teeth | |
| 12" HDDF | 706012 | 12" HD Double Flight Auger with Teeth | |
| 14" HDSF | 706033 | 14" HD Single Flight Auger with Teeth | |
| 14" HDDF | 706037 | 14" HD Double Flight Auger with Teeth | |
| 18" HDDF | 706070 | 18" HD Double Flight Auger with Teeth | |
| 24" HDDF | 706075 | 24" HD Double Flight Auger with Teeth | |
| 12" Ext. | 12" Optional Extension Ext. Parts List | ||
|
Standard Duty Augers: use for lighter soils free of stones, roots, etc. Heavy Duty Single Flight Augers: use for tougher digging or where stones, roots, etc. may be present. Heavy Duty Double Flight Augers: use for loose soil such as sand/gravel to help carry soil to the surface. |
|||
