Description

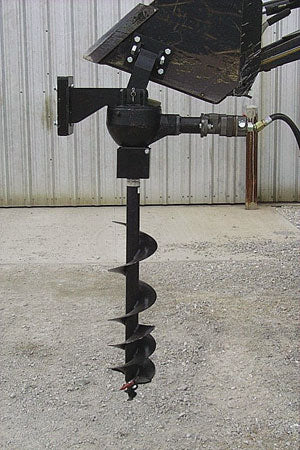

714HC Bolt-on Hydraulic Post Hole Digger
Increase productivity with these bolt-on hydraulic diggers. Mounts to side of any loader bucket allowing the operator an unobstructed view of the task at hand. Counter weights assure the digger maintains its vertical position while the loader provides the down force for reliable digging.
| Specifications | ||
| Model | 714HC | 724HC |
| Mount Type | Bolt-on | Bolt-on |
| Gearbox Ratio | 3.18:1 | 3.18:1 |
| Gearbox Output Shaft | 2" | 2" |
| Gearbox Bearings | Tapered Roller | Tapered Roller |
| Gearbox Seals | Double lip, spring loaded | Double lip, spring loaded |
| Drive Type | Hydraulic | Hydraulic |
| Gearbox Ltd. Warranty | 5-yrs. | 5-yrs. |
| Hyd. Requirement | 5-10 GPM | 10-20 GPM |
| Hyd. Pressure psi | 1500-3000 | 1500-3000 |
| Auger Sizes | 6” thru 14" | 6” thru 24" |
| Auger Length | 42" | 42" |
| Auger Type | STD, HDSF, HDDF | STD, HDSF, HDDF |
| Auger Point - Bolt-in | Fish Tail | Fish Tail |
| 12" Auger Ext. | Opt. (170705) | Opt. (170705) |
| Weight (lbs.) | 125 | 127 |
| Product Number | 702100 | 702105 |
| Worksaver Augers | |||
| Model | Item # | Description | |
| 6" STD | 170585 | 6" Standard Duty Single Flight Auger with Teeth | |
| 9" STD | 170710 | 9" Standard Duty Single Flight Auger with Teeth | |
| 12" STD | 170720 | 12" Standard Duty Single Flight Auger with Teeth | |
| 6" HDSF | 706150 | 6" HD Single Flight Auger with Teeth | |
| 6" HDDF | 706155 | 6" HD Double Flight Auger with Teeth | |
| 9" HDSF | 706109 | 9" HD Single Flight Auger with Teeth | |
| 9" HDDF | 706009 | 9" HD Double Flight Auger with Teeth | |
| 12" HDSF | 706112 | 12" HD Single Flight Auger with Teeth | |
| 12" HDDF | 706012 | 12" HD Double Flight Auger with Teeth | |
| 14" HDSF | 706033 | 14" HD Single Flight Auger with Teeth | |
| 14" HDDF | 706037 | 14" HD Double Flight Auger with Teeth | |
| 18" HDDF | 706070 | 18" HD Double Flight Auger with Teeth | |
| 24" HDDF | 706075 | 24" HD Double Flight Auger with Teeth | |
| 12" Ext. | 12" Optional Extension Ext. Parts List | ||
|
Standard Duty Augers: use for lighter soils free of stones, roots, etc. Heavy Duty Single Flight Augers: use for tougher digging or where stones, roots, etc. may be present. Heavy Duty Double Flight Augers: use for loose soil such as sand/gravel to help carry soil to the surface. |
|||
