Description

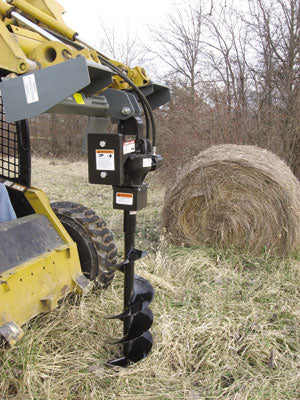

914HC Skid Steer Mounted Hydraulic Post Hole Digger
Increase your reach over shrubs, fence lines and other obstructions with a skid steer mounted 914HC/924HC hydraulically driven digger. It’s a great time saver with exceptional up-front visibility and control. Frame design incorporates a gearbox cradle to eliminate auger swing during transport. Choose from 6” to 24” diameter augers. Counter weights assures the digger maintains its vertical position. Note: These diggers will also fit on tractor loaders equipped with the “universal” skid steer attaching system. Models are also available for tractor loaders with the Euro/Global bucket quick attach system.
| Specifications | |||
| Model | 914HC | 924HC | 924HC/Euro |
| Mount Type | Skid Steer | Skid Steer | Euro/Global |
| Gearbox Ratio | 3.18:1 | 3.18:1 | 3.18:1 |
| Gearbox Output Shaft | 2" | 2" | 2” |
| Gearbox Bearings | Tapered Roller | Tapered Roller | Tapered Roller |
| Gearbox Seals | Double lip, spring loaded | Double lip, spring loaded | Double lip, spring loaded |
| Drive Type | Hydraulic | Hydraulic | Hydraulic |
| Gearbox Ltd. Warranty | 5-yrs. | 5-yrs. | 5-yrs. |
| Hyd. Requirement | 5-10 GPM | 10-20 GPM | 10-20 GPM |
| Hyd. Pressure psi | 1500-3000 | 1500-3000 | 1500-3000 |
| Auger Sizes | 6” thru 14" | 6” thru 24" | 6” thru 24” |
| Auger Length | 42" | 42" | 42” |
| Auger Type | STD, HDSF, HDDF | STD, HDSF, HDDF | STD, HDSF, HDDF |
| Auger Point - Bolt-in | Fish Tail | Fish Tail | Fish Tail |
| 12" Auger Ext. | Opt. (170705) | Opt. (170705) | Opt. (170705) |
| Weight (lbs.) | 208 | 210 | 220 |
| Product Number | 702120 | 702125 | 702135 |
| Worksaver Augers | |||
| Model | Item # | Description | |
| 6" STD | 170585 | 6" Standard Duty Single Flight Auger with Teeth | |
| 9" STD | 170710 | 9" Standard Duty Single Flight Auger with Teeth | |
| 12" STD | 170720 | 12" Standard Duty Single Flight Auger with Teeth | |
| 6" HDSF | 706150 | 6" HD Single Flight Auger with Teeth | |
| 6" HDDF | 706155 | 6" HD Double Flight Auger with Teeth | |
| 9" HDSF | 706109 | 9" HD Single Flight Auger with Teeth | |
| 9" HDDF | 706009 | 9" HD Double Flight Auger with Teeth | |
| 12" HDSF | 706112 | 12" HD Single Flight Auger with Teeth | |
| 12" HDDF | 706012 | 12" HD Double Flight Auger with Teeth | |
| 14" HDSF | 706033 | 14" HD Single Flight Auger with Teeth | |
| 14" HDDF | 706037 | 14" HD Double Flight Auger with Teeth | |
| 18" HDDF | 706070 | 18" HD Double Flight Auger with Teeth | |
| 24" HDDF | 706075 | 24" HD Double Flight Auger with Teeth | |
| 12" Ext. | 12" Optional Extension Ext. Parts List | ||
|
Standard Duty Augers: use for lighter soils free of stones, roots, etc. Heavy Duty Single Flight Augers: use for tougher digging or where stones, roots, etc. may be present. Heavy Duty Double Flight Augers: use for loose soil such as sand/gravel to help carry soil to the surface. |
|||
