Description

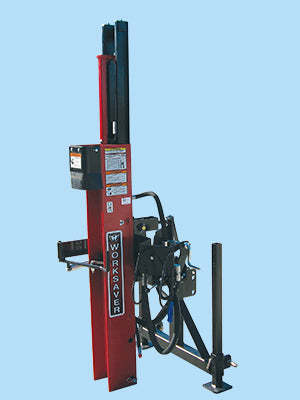

HPD-16 Manual Adjust, 3-pt. Hydraulic Post Drivers
The HPD-16/22Q models with manual adjust quickly delivers a tight post set for wood or steel posts. Base model offers manual adjustment cranks and bubble level for perfect vertical alignment on flatland or hillsides. Transport lock pin secures unit for travel and storage. Greaseable pivot points provide reliable movement of the driver.
| Specifications | ||
| Model | HPD-16 | HPD-22Q |
| Max. Post Size | 5” x 9’ | 8-3/4” x 10’ |
| Impact at Full Stroke | 32,000 lbs. | 80,000 lbs. |
| Impact at Half Stroke | 16,000 lbs. | 40,000 lbs. |
| Mount Type | 3-pt. Cat I/II | 3-pt. Cat I/II |
| Tilt Adj. Front/Back | 10° each way | 10° each way |
| Tilt Adj. Side/Side | 17° each way | 17° each way |
| Manual Adjust | Yes | Yes |
| Stabilizer Legs | Standard | Standard |
| Slide Blocks Material | Nyrim | UHMW* |
| Spring Post Holder | Standard | Standard |
| Min. Tractor Size | 20-22 hp | 30-35 hp |
| Rear Hitch Category | Cat. I or II | Cat. Ior II |
| Min. Hydraulic Req. | 3-4 GPM | 6-8 GPM |
| QuickChange Rod Seal | Yes | Yes |
| Q-springs | N/A | Yes |
| Valve(s) | Sgl. Spool | Sgl. Spool |
| Hoses less couplers | Standard | Standard |
| Weight (lbs.) | 600 | 795 |
| Product Number | 814400 | 815300 |
