Description

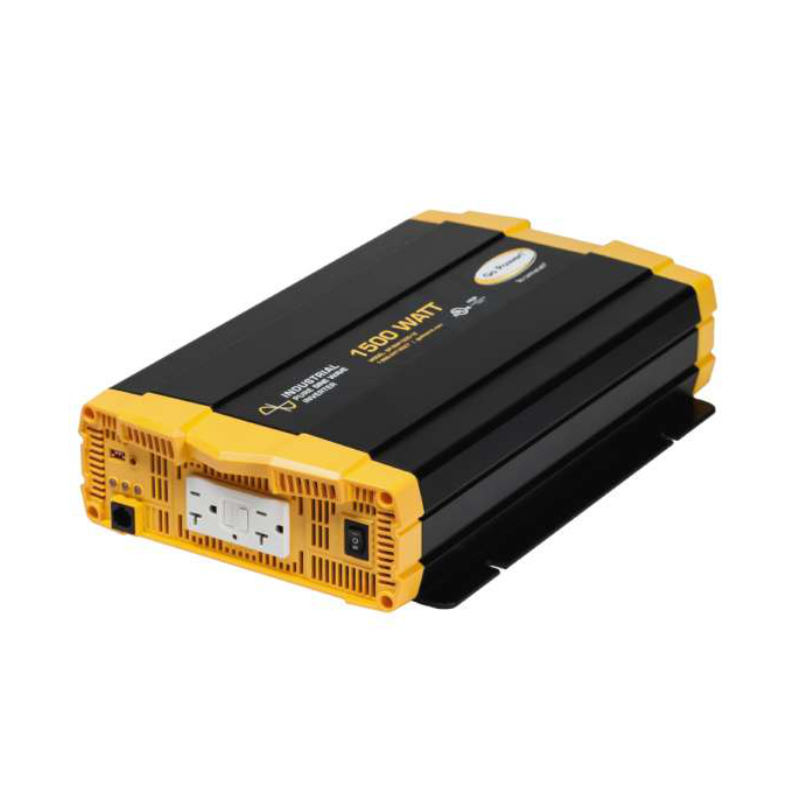

Go Power GP-ISW1500 1500W Industrial Pure Sine Wave Inverter
The Go Power! 1500 watt Industrial Pure Sine Wave Inverter is ideal for large loads, like a microwave or other medium-sized electronics. A strong performer for larger loads that demand a clean, pure source of AC power, the GP-ISW1500 is a good choice for powering appliances, electronic equipment like TVs, stereos, computers, or as a source of emergency backup power. This product is included in the WEEKENDER ISW Charging System.
Product Overview
GP-ISW1500
The Go Power! GP-ISW1500 can run appliances, and sensitive electronic equipment like microwaves, kettles, computers and more.
Features:
- Produces an exact replica of AC power for optimal performance
- Runs any device in wattage range without interference
- Durable, low profile design
- Pair with a compatible solar controller to turn on and off (GP-PWM-30)
- Powersave mode
- Dual GFCI outlets
- Full overload protection
- 2 year warranty
Power Specs:
|
GP-ISW700 |
GP-ISW1000 |
GP-ISW1500 |
Continuous Output Power |
700 W (VA) |
1000 W (VA) |
1500 W (VA) |
Maximum Surge Rating |
1230 W (VA) |
1750 W (VA) |
2650 W (VA) |
Output Waveform |
Pure Sine Wave |
||
Output Voltage Range ± 3% |
100 – 120 VAC (Dip Switch Selectable) |
||
Input Voltage |
12 V: 10.5 – 16.5 VDC 24 V: 21 – 33 VDC |
||
Efficiency |
12 V: 91% 24 V: 93% |
12 V: 92% 24 V: 93% |
12 V: 91% 24 V: 92% |
Operating Specs: |
GP-ISW700 |
GP-ISW1000 |
GP-ISW1500 |
No Load Current Draw / Powersave |
12 V: ≤ 1.5 A / < 0.1 A 24 V: ≤ 0.8 A / < 0.06 A |
12 V: ≤ 1.5 A / < 0.1 A 24 V: ≤ 0.8 A / < 0.06 A |
12 V: ≤ 1.8 A / < 0.1 A 24 V: ≤ 1.0 A / < 0.05 A |
Input Protection |
Over/Under Voltage, Reverse Polarity (Fused) |
||
Output Protection |
Short Circuit, Overload, Over/Under Temperature |
||
Low Battery Alarm ± 0.3 V (± 0.5 V for 24 V inverters) |
12 V: 10.5 V 24 V: 21 V |
||
Low Battery Shutdown ± 0.3 V (± 0.5 V for 24 V inverters) |
12 V: 10.5 V 24 V: 21 V |
||
Operating Temperature Range |
-4˚ F – 104˚ F (-20˚ C – 40˚ C) |
||
Storage Temperature Range |
-22˚ F – 158˚ F (-30˚ C – 40˚ C) |
||
|
|
|
|
Cooling |
Temperature and Load Controller Cooling Fan |
||
AC Output Connections |
Dual GFCI Outlet |
||
Remote Power Option |
Yes |
||
Product Specs: |
|
|
|
Dimensions (L x W x H) |
13.00” x 7.87” x 3.27” (330 mm x 200 mm x 83 mm) |
14.65” x 7.87” x 3.27” (372 mm x 200 mm x 83 mm) |
16.59” x 9.76” x 3.27” (421 mm x 248 mm x 83 mm) |
Weight |
5.73 lbs (2.6 kg) |
7.19 lbs (3.26 kg) |
9.13 lbs (4.14 kg) |
Warranty |
2 Years |
||
Inverter Install Kits |
GP-DC-KIT2 |
12 V: GP-DC-KIT3 24 V: GP-DC-KIT2 |
|
Remotes (Optional) |
GP-ISW-R / GP-SWR-A |
||
Regulations and Safety |
UL 458, FCC Part 15 Class B |
