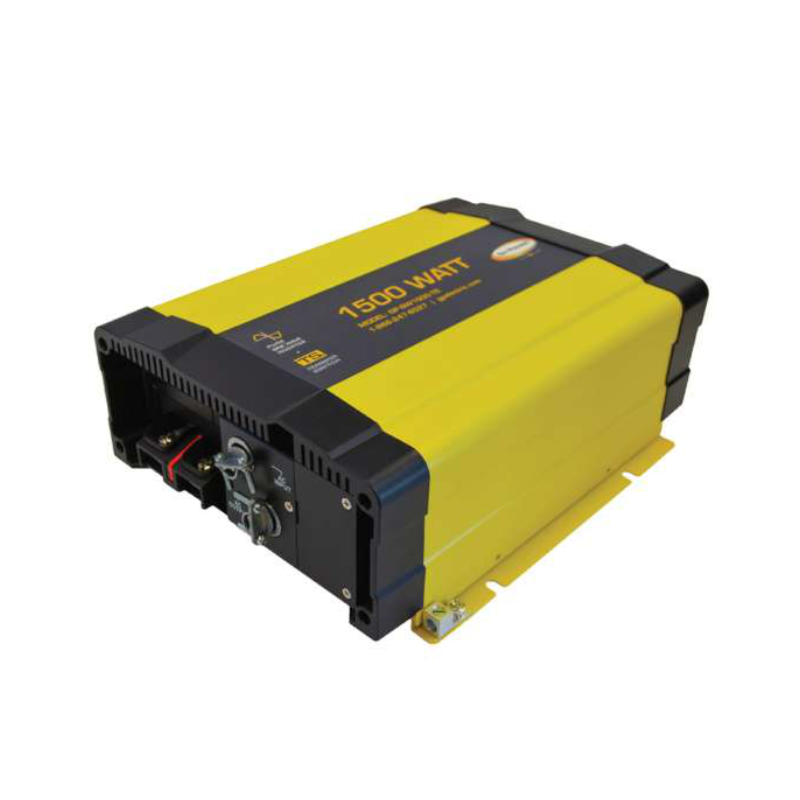

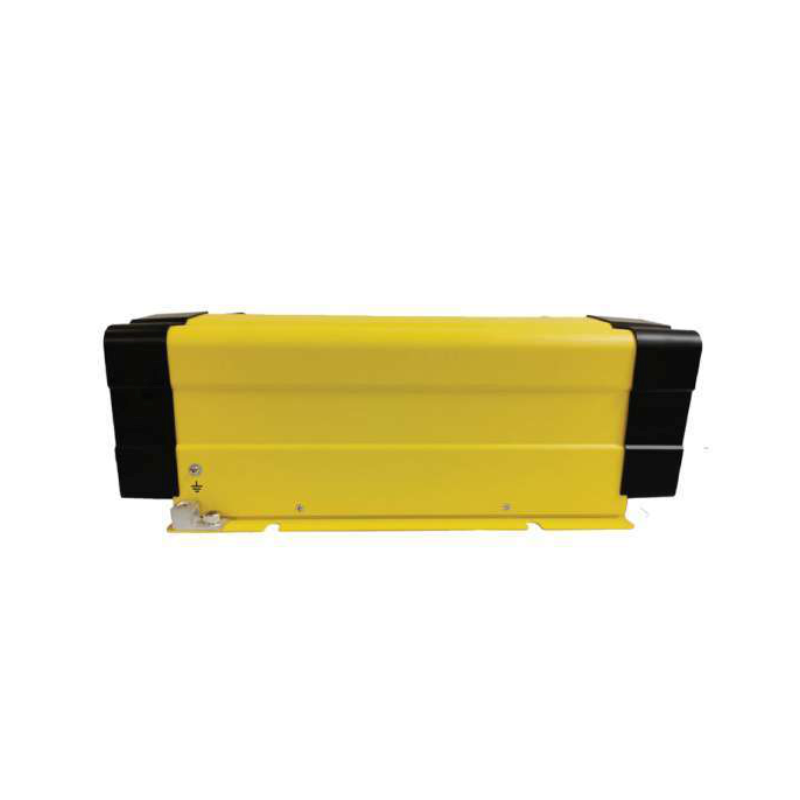

Go Power GP-SW1500-TS 1500W Pure Sine Inverter & Transfer Switch
1500-watt Pure Sine Wave Inverter and 20-amp Transfer Switch in one compact unit. Go Power!’s GP-SW1500-TS pure sine wave inverter with transfer switch provides robust cUL certified AC power with a built-in 20-amp transfer switch, allowing you to switch from shore to battery power automatically.
Applications
Product Overview
MODEL: GP-SW1500-TS
Product Features:
- Run more circuits: microwave, TV, outlets, etc.
- Perfect replica of AC power
- Built-in 20 amp Transfer Switch
- 2-year warranty
- Run 1500 watts of power from battery
- Durable, low profile design
|
DC Voltage |
12VDC |
|
Voltage Range |
10.0 ~ 16.0VDC |
|
No Load Current |
< 0.9A |
|
Continuous Output Power |
1500W (de-rating after 40°C, refer to de-rating curve) |
|
Surge Power (<0.2Sec) |
2400W |
|
Peak Power (<3 Min) |
1800-2400W |
|
Output Power (<3 Min) |
1500-1800W |
|
Frequency |
50 / 60 Hz ± 0.1% |
|
Output Voltage |
100 / 110 / 115 / 120VAC ±3% |
|
Efficiency Max. |
88% |
|
Output Waveform |
Pure Sine Wave |
|
Circuit Breaker |
20A |
|
Transfer Switch |
Standard ATS : Inverter to utility AC: <5ms.; |
|
BAT.Low Alarm ± 3% |
10.5VDC |
|
BAT.Low Shut-down ± 3% |
10.0VDC |
|
Input Protection |
Reverse Polarity (Fuse) / Under Voltage / Over Voltage |
|
Output Protection |
Short Circuit / Overload / Over Temperature / Over Voltage |
|
Operating Temp. |
-20 °C~40 °C refer to GP-SW1500TS power de-rating curve |
|
Storage Temp. |
-40 °C~70 °C |
|
Relative Humidity |
Max. 90%, non-condensing |
|
Regulations and Safety |
Certified UL 458 (6th Edition), Certified FCC class B |
|

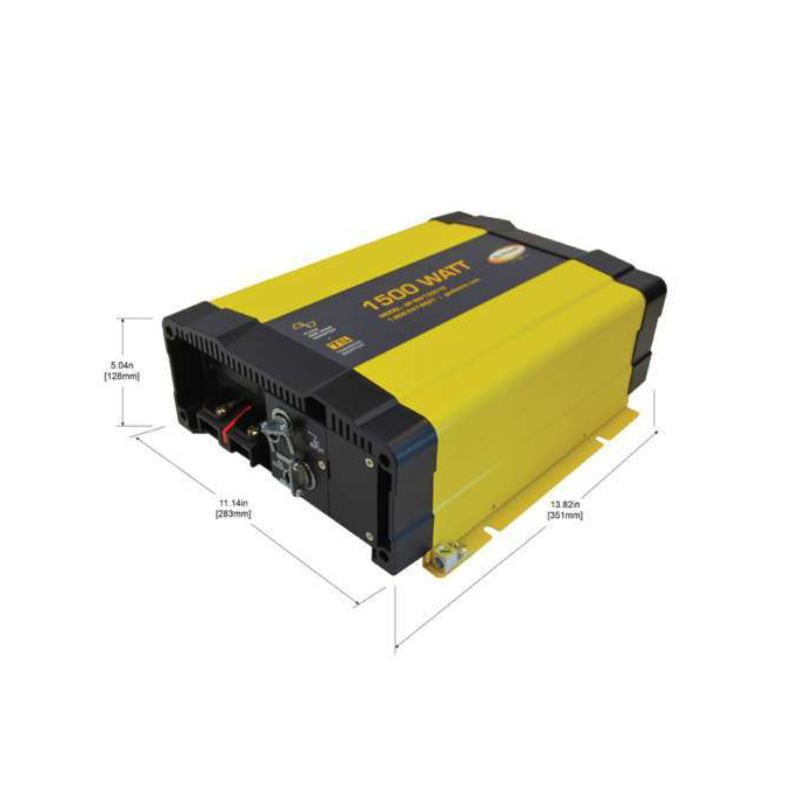

Dimensions (L x W x H) |
283x128x351 mm / 11.14×5.04×13.82 inch |
