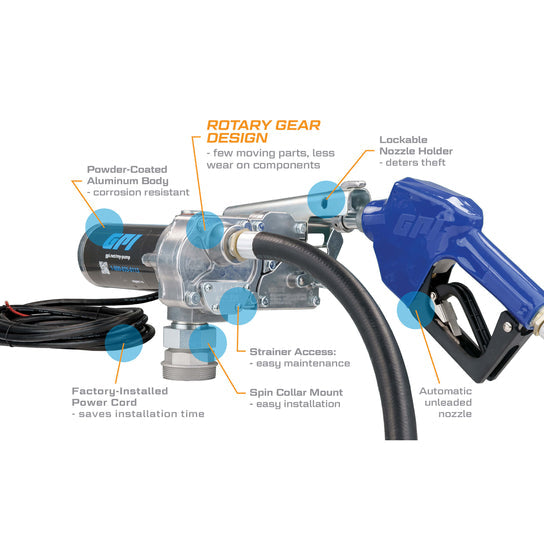

• DURABLE ALUMINUM HOUSING: Manufactured from high-quality diecast aluminum, our fuel transfer pump with automatic shut-off nozzle is extremely dependable and lightweight and will put minimal stress on your tank bung. The powder-coated aluminum housing is rugged and corrosion-resistant to withstand years of work in any application.
• ROTARY GEAR DESIGN: The rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components. Thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. When you need reliable performance GPI’s gear pumps are over engineered to deliver.
• 2-YEAR WARRANTY: Our M-150S GPI fuel transfer pumps come with a 2-year warranty and are UL Listed Motor. Feel confident in knowing that your fuel pump has been providing longer run times and award-winning performance.
• EASY-TO-USE: The 12-VDC motor of our fuel transfer pumps is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 15GPM. Additionally, the innovative spin collar design of our fuel transfer pump makes installation fast and easy!
• Lockable nozzle holder protects your investment and deters theft.
• Strainer access makes maintenance quick and easy.
• Designed for permanent mounting on vented storage tanks
• A convenient spin collar and factory-installed power cord make installation safe and easy.

What's in the Box:

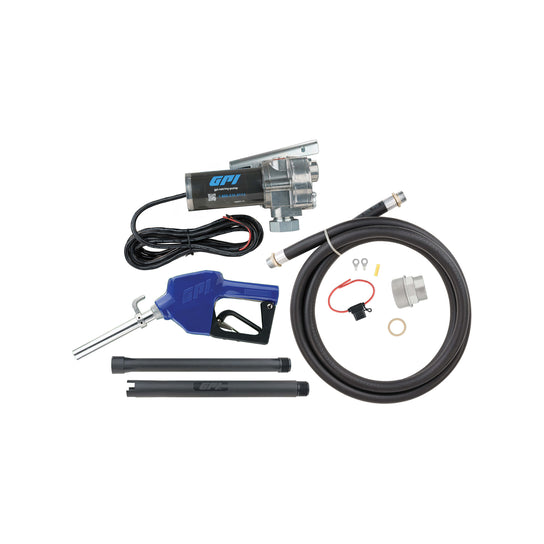

Includes the M-150S 15 GPM pump with spin collar, automatic unleaded nozzle, lockable nozzle holder, dispensing hose, factory-installed power cord, telescoping suction pipe, tank adapter, fuse assembly, owners manual.

Specifications:

Max. Flow Rate:15 GPM (57 L/min)

Voltage Input:12V (DC)

Technology: Rotary Gear

Amps Rated:18 amps

Duty Cycle:30 min on/30 min off

Power Cord:18 ft. (5.5m), 12/2 AWG, Factory Installed

Max. Discharge Pressure:15 PSI (1.03 bar)

Operating Temperature:-20° F to 125° F (-29° C to 52° C)

Suction Lift: Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)

Discharge Lift: Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)

Pump Housing Material: Powder Coated, Corrosion-Resistant Diecast Aluminum

Wetted Materials: Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel

Mounting Type/Thread: Spin Collar, 2in. MNPT

Suction Pipe: Polypropylene, Telescoping 15 to 40in. x 1in. MNPT

Inlet:1 in. FNPT

Outlet:3/4 in. FNPT

Dispensing Hose:12 ft.(3.7m) x 3/4 in. MNPT

Nozzle:3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded

Nozzle Holder Type: Lockable

Warranty: 2-yr pump warranty

UPC: 031401150612

Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
