Description
GPI 18 GPM 12V Fuel Transfer Pump
SKU 110300-2 | MODEL M-180S-AU
Recommended for use with these fuels:
Gasoline up to E15 | Diesel Fuel up to B20 | KeroseneThe GPI M-180 Series Fuel Transfer Pump provides longer run times and reliable performance year after year. Delivering flow rates up to 18 GPM (68 L/min), the M-180S is the pump of choice for agricultural, automotive, and construction applications dispensing gasoline, diesel fuel, and kerosene. Available in a wide selection of configurations with an automatic or manual nozzle, and filter kit combinations. The M-180 Series is durable, manufactured from high-quality die-cast aluminum, easy to use, and engineered to last featuring a self-priming rotary gear design.

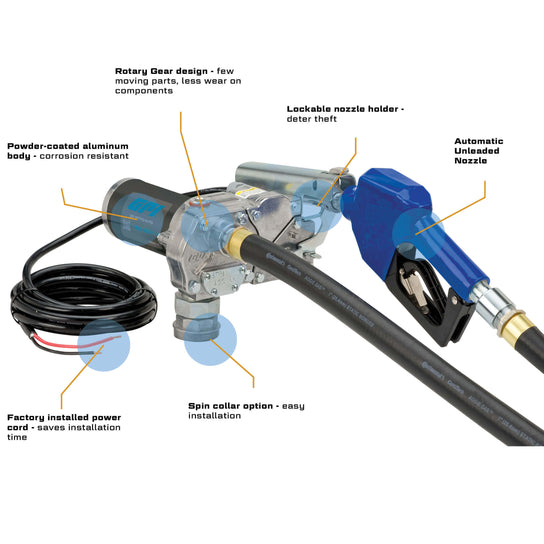

Features & Benefits
- More operating hours means longer pump life and greater value.
- Convenient spin collar provides for easy installation and versatile pump mounting.
- Powder-coated, lightweight aluminum body provides corrosion resistance and reduces tank stress.
- Lockable nozzle holder protects your investment and deters theft.
- Designed for permanent mounting on vented storage tanks.
- Low profile design.
- UL Listed Motor

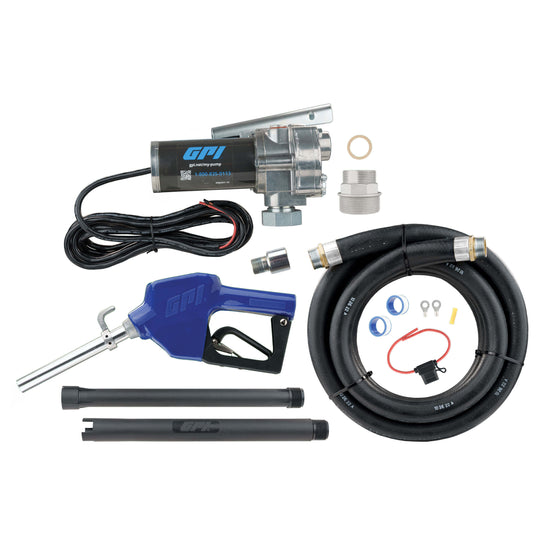

What's in the Box:
Includes the M-180S 18 GPM pump, automatic unleaded nozzle, dispensing hose w/static wire, factory-installed power cord, telescoping suction pipe, tank adapter, fuse assembly, owners manual.
Specifications:
Max. Flow Rate: 18 GPM (69 L/min)
Voltage Input: 12V (DC)
Technology: Rotary Gear
Amps Rated: 20 amps
Duty Cycle: 30 min on/30 min off
Power Cord: 18 ft. (5.5m), 12/2 AWG, Factory Installed
Max. Discharge Pressure: 15 PSI (1.03 bar)
Operating Temperature: -20° F to 125° F (-29° C to 52° C)
Suction Lift: Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
Discharge Lift: Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
Pump Housing Material: Powder Coated, Corrosion-Resistant Diecast Aluminum
Wetted Materials: Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
Mounting Type/Thread: Spin Collar, 2in. MNPT
Suction Pipe: Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
Inlet: 1 in. FNPT
Outlet: 1 in. FNPT
Dispensing Hose: 12 ft. (3.7m) x 1 in. MNPT
Nozzle: 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
Nozzle Holder Type: Lockable
Warranty: 2-yr pump warranty
UPC: 031401103021
Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
