Description

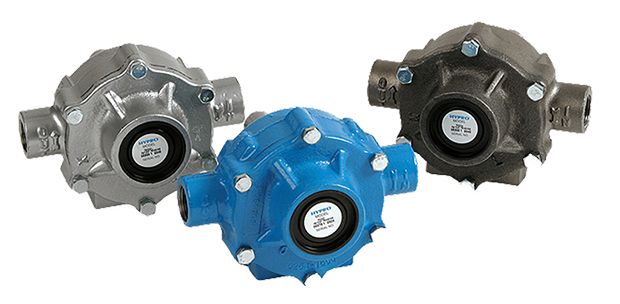

Pentair Hypro Series 8-Roller Pump - 7560C-A
Mfr Part #: 7560C
Type: Roller Pump
Housing: Cast Iron
Supplier: Pentair Hypro
Port Size: 3/4" NPT
Gallons Per Minute GPM : 22.5
The 7560 series, 8 roller, pump achieves up to 22.5 gpm (85.2 lpm) and 300 psi (20.7 bar). HERBICIDE USERS: Cast Iron pumps lasted to 140 hours before failure, Ni-Resist pumps lasted to 332 hours before failure, and Silver Series XL pumps ran over 1000 hours and still met new pump specs! Herbicide users get up to 10 times longer pump life with Silver Series! 15/16" solid stainless steel shaft that resists corrosion.
- Super Rollers (standard) provide premium wear and life with Poly and PTFE options available for superior chemical resistance.
- Viton® seals offer the best overall chemical resistance.
- Standard rotation is counter clockwise, clockwise rotation is available
SPECIFICATIONS
SEAL MATERIAL: Viton
PUMP TYPE: Roller Pump
PORTS:3⁄4" NPT
| ITEM # | HOUSING MATERIAL | MAX GPM | MAX LPM | MAX PSI | MAX BAR | MAX RPM | SHAFT OUTPUT (US) | SHAFT OUTPUT (METRIC) | SHAFT |
|---|---|---|---|---|---|---|---|---|---|
|
7560C
|
Cast Iron
|
22.5
|
85.2
|
300
|
26.7
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
