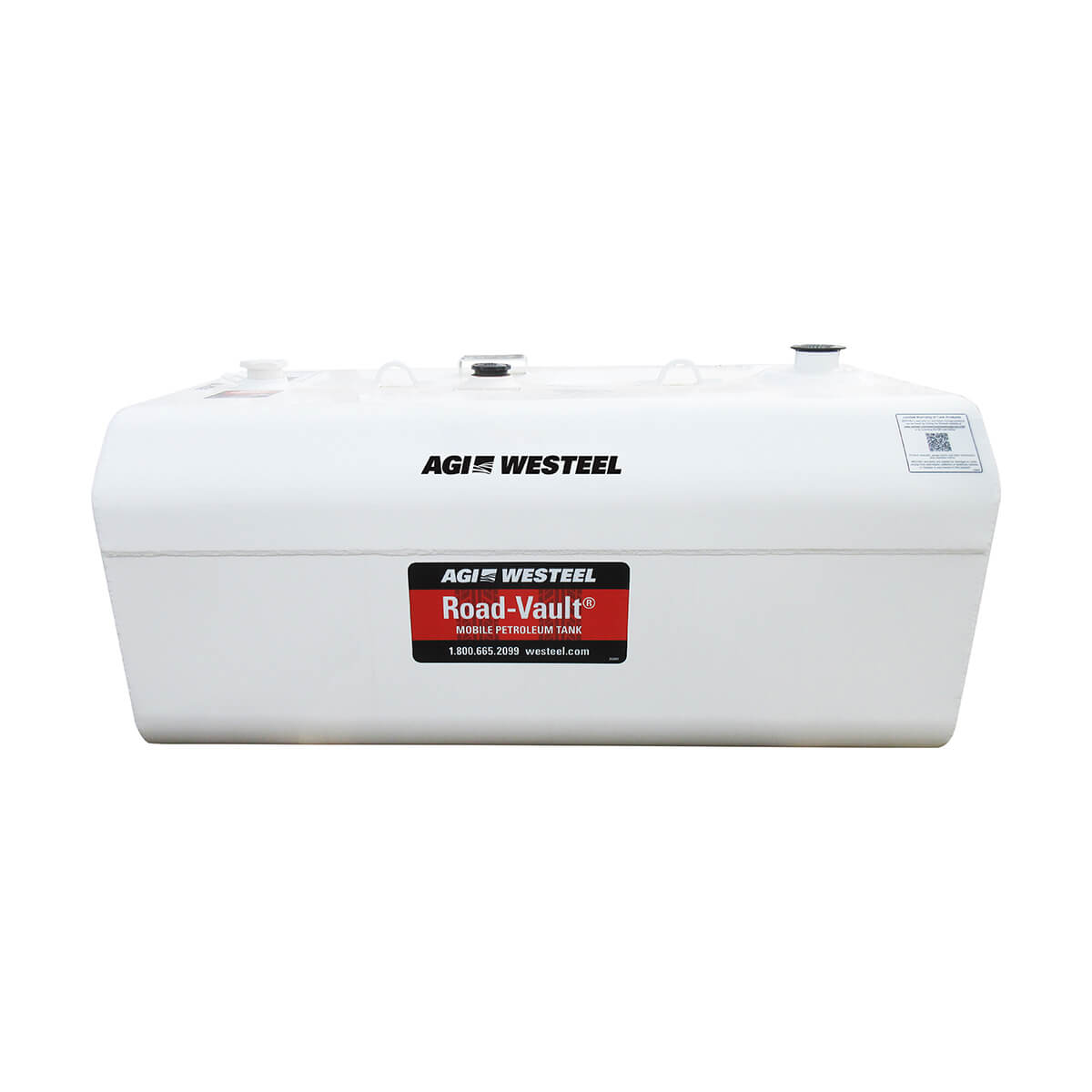

Road-Vault® Flat Top 450 L (99 IG) Mobile Kit - J-Bolt 262572J

Road-Vault® Flat Top 450 L (99 IG) Mobile Kit - J-Bolt 262572J

AGI Westeel’s Road-Vault® box mounted product line provides leading edge innovation in mobile petroleum transport in an IBC/Transport Canada approved system. Easy to use, install and move, they set the bar for mobile and convenient fuel storage, while ensuring your mobile refueling application meets safe transport practices.

Their robust design has been engineered to provide environmentally safe mobile transportation of flammable or combustible liquids in a Transport Canada approved container. The mobile single wall storage system delivers the standard features your mobile refueling application deserves, while maintaining  safe transport practices .

• Transport Canada CAN/CGSB-43.146-2002.
• Includes: tank, two base brackets, and J-bolt mount kit.
• Standard plugged tank openings include: 2" NPT circular pump mount opening, 2" NPT fusible plug (included), 2" NPT fill/vent opening.

Capacity

• Litres: 450
• US Gallon:
• Imp Gallon:  96

Safe Fuel Fill Level:

• Litres: 413

• US Gal: 91

Dimensions: in.

• Length: 51 in
• Width: 29 in
• Height: 23 in

Outer Tank Thickness:

• n/a
• n/a

Inner Tank Thickness: mm (gauge)

• n/a
• n/a

Weight (Empty): lbs. (Kg)

• 205 lbs. (93 Kg)


Weight (Full):

• 1,023 lbs. (465 Kg.)


The Road-Vault features the following:

• Three profiles to choose from


  The most comprehensive single wall Road-Vault® line from AGI Westeel with three profiles: small, medium and large

  Medium and large models have embossed ends for added strength

• Low-profile design
  285L, 290L, 450L and 545L models have a low-profile design that can sit in the back of a pickup truck without obstructing the view out of the rear window
• Fits between wheel wells
  285L model also fits between the wheel wells and back window on a short box pickup, allowing the user to accommodate both the fuel tank and most fifth wheel hitches

• No coating issues
  Circular pump mounts on all models eliminate coating issues

• Easy installation
  J-bolt tie down on all models allows for ease of installation and removal

• Optional lifting lugsOptional lifting lugs can be used to move the tank with fuel inside
• Three standard fittingsThree standard fittings on all models, with optional extra fittings available
• Integral baffle systemIntegral baffle system on 830L, 680L, 545L, 450L, and 285L models increases structural rigidity and decreases fuel sloshing

*Transport Canada codes limit the maximum fill capacity of a mobile IBC to be 95% of the tank capacity
